How Safe Are You? Mapping Disasters

~ slubkin ~ 1 Comment

The assignment is take someone else’s map and modify it. I was assigned Asha Katti’s map of wildfire-prone areas in the U.S.

AshaMap

Here is the link to Asha’s map.

Asha is concerned with how wildfires affect people. The other layers on her map include 2014 USA population density and 2009 USA social vulnerability.

Fires aren’t the only natural disasters that impact American lives. When the 1999 Loma Prieta earthquake struck the Bay Area, I was working at a social service agency in Berkeley. The earthquake left thousands of people homeless and jobless. I learned how easily a person’s life can be disrupted by an unexpected event. But, it doesn’t take an earthquake.

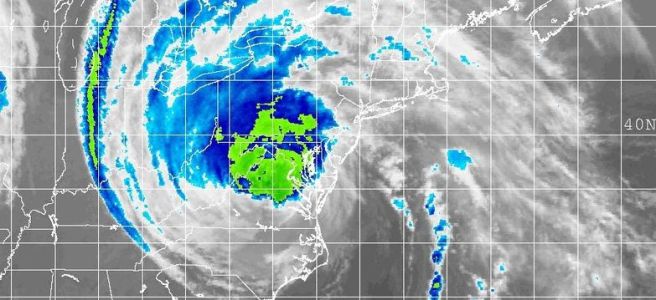

It’s been three years since Hurricane Sandy. The category 2 storm flooded neighborhoods along the East Coast. The worst damage was in New York and New Jersey. And, people are still recovering from Sandy’s effects.

So, I amended the map to show the risk of all natural disasters that have a potential major impact on American lives: volcanoes, earthquakes, hurricanes, tsunamis,n floods, tornadoes and wildfires.  Did I leave anything out? Zombie outbreak?

This is Asha’s fire layer in Northern Virginia, where I live. Although we do have wildfire warning days in the summer, our overall risk of fire is low to very low (green and light green).

(Clicking on any of the maps below should take you to esri’s more interactive map viewer, so you can look at your neighborhood.)

fireva

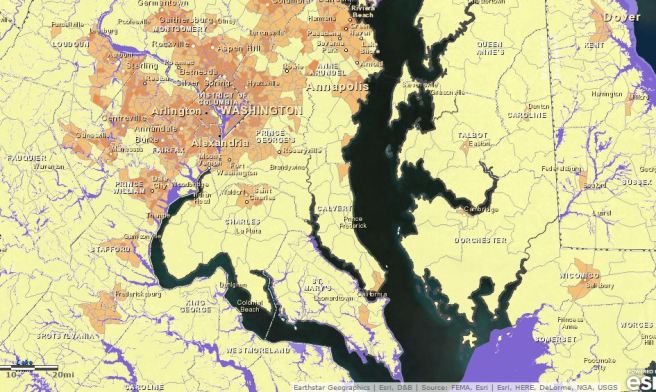

While I haven’t experienced a wildfire in Virginia, flooding occurs regularly. The area in purple is the 100 year flood zone. This is the area that has a 1 percent chance of flooding in any given year. The yellows show population density.

http://arcg.is/1M13705

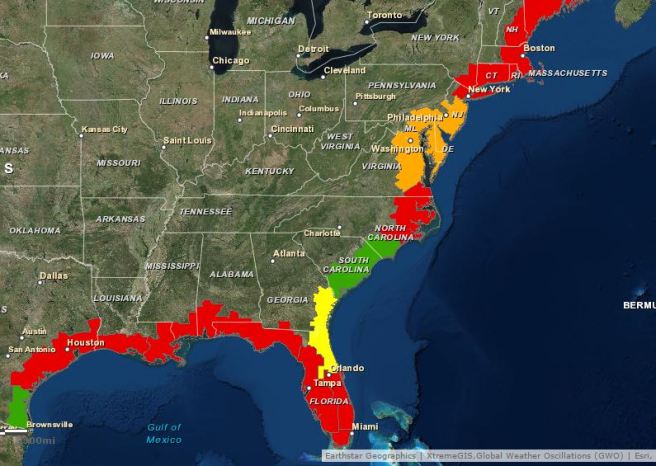

Floods in Virginia can be the results of hurricanes. We have a moderately high hurricane risk (orange). This is the same risk as New Jersey.

hurricane

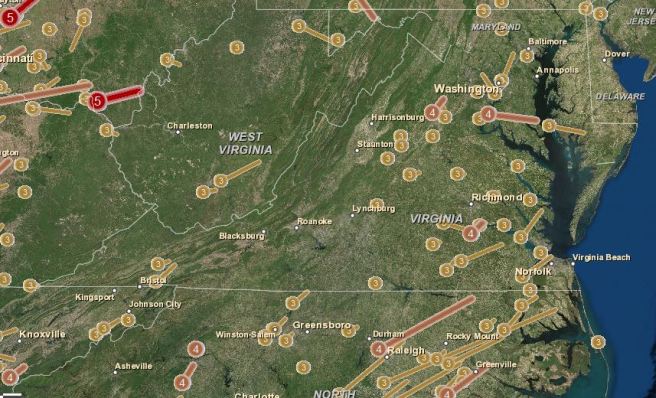

The other severe weather threat that we worry about is tornadoes.

tornadoes

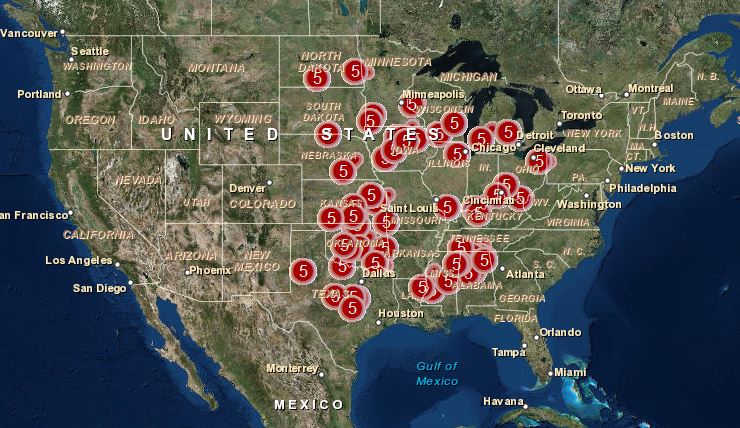

However, we are less likely to have tornadoes in Virginia than in many other parts of the country.

tornadous

What about geological disasters? While we do have earthquakes in Virginia, our overall earthquake risk is very low, especially compared to earthquake risk on the West Coast. On the map, light areas indicate low risk while dark areas indicate high risk.

earthquakesVA

This map of the West Coast shows earthquake and volcanoes. Volcanoes aren’t a risk in Virginia (or most of the United States), but there are active (red) and potentially active (blue) volcanoes in Washington, Oregon and Northern California.  Recent earthquakes are shown as smaller dots. The red markings on the coast are tsunami risk areas.

volcano

A natural disaster can change a life without any warning. So, how safe are you?

After an Earthquake – Tweet

~ slubkin ~ 2 Comments

Yesterday (10/15/2015), was the day for Great ShakeOut Earthquake Drills. At 10:15 a.m., I was lecturing about volcanoes, when my slides were replaced with an earthquake drill announcement. I told my students that if an actual earthquake were to happen, they should duck under their desks and stay there until the shaking stopped. Then we went back to volcanoes.

While I was talking about what to do in the event of an earthquake, my children practiced ducking under their desks. Worldwide, more than 22 million people participated in yesterday’s earthquake drills. They learned to drop, cover and hold on. But, they didn’t learn what to do once the shaking stops.

Perhaps one of the most helpful things to do after an earthquake is to tweet about it. USGS seismologist Paul Earle teamed up with USGS computer scientist Michelle Guy to develop a method to use tweets to track and detect earthquakes.

Earle and Guy were able to create a time series algorithm that determined when an earthquake occurred by detecting posts that mentioned earthquakes. This was helpful, but after looking at posts in more detail they noticed two things:

  1. People who were affected by earthquakes kept their initial posts very short.
  2. People who experienced the quake first hand were less likely to share links or discuss the magnitude of the earthquake.

So, the USGS team decided to filter out tweets with more than seven words, tweets with links, and tweets with numbers. They created filters in many languages.

The USGS has about 2,000 earthquake sensors – most are in the United States. The sensors will detect earthquakes, but it can take several minutes or longer for the seismic waves generated by an earthquake to travel through the Earth and reach a sensor. Scientists need several sensor measurements to triangulate an earthquakes epicenter.

Twitter has more than 300 million users per month. Within 30 seconds, tweets about an earthquake can spread around the world. There is little cost for this information as it uses Twitters Public API and open-source software.

While tweets won’t replace sensors and seismometers, they do provide additional information that can be used for emergency response and damage assessment – especially in areas that don’t have a lot of seismometer coverage.

For more information, click here.

To learn about how social media helped provide information after the Nepal earthquake, click here.

Here are several earthquakes that occurred in Chile on September 25, 2015.

ChileQuake

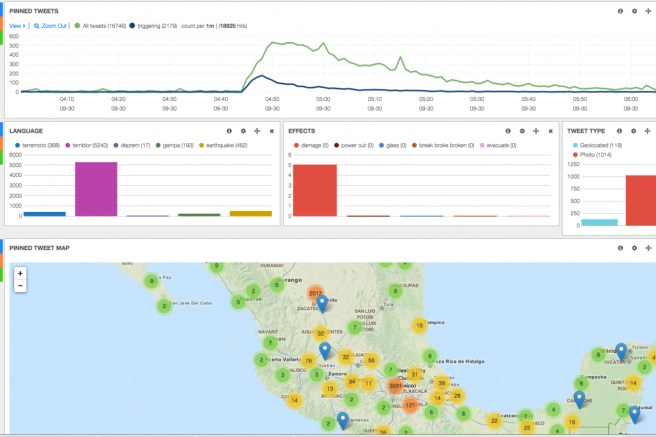

Here are the Twitter statistics. Source: https://blog.twitter.com/2015/usgs-twitter-data-earthquake-detection

twitterquake-stats

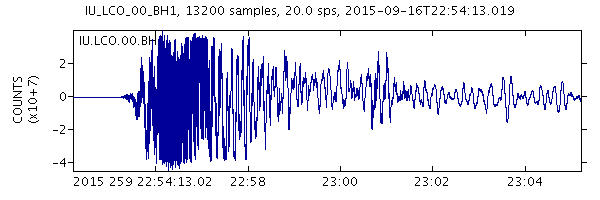

Seismogram image of vertical displacement at Las Campanas Astronomical Observatory, 8.3 magnitude earthquake, 9-16-2015. Source IRIS

All Maps are Not Created Equal: Blogging About Maps

~ slubkin ~ Leave a comment

The assignment is to identify two web maps and two static maps and determine the appropriateness of the medium for internet use.

Geological maps often start as topographic maps.  Topographic maps are available for download from the USGS. There is a fee for most of the maps.

My Geology 111 students use the Fredericksburg quadrangle to practice their map skills. That map can be viewed here. You can see in the image below, that this is not an ideal map for the web.

There is a lot of detail on this map, but I can’t see that detail on my monitor. The contours are barely visible. I ask my students to count contours to estimate change in elevation. This would be impossible if they had to do it on a laptop screen.

fredericksburgquad

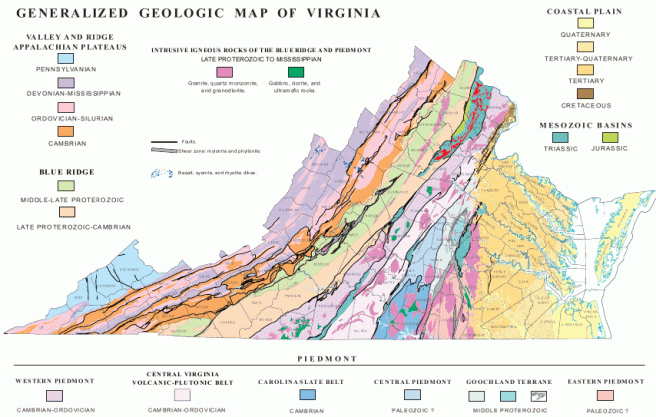

When I was a student, I used topographic maps to make geologic maps – maps that show rock units. This is an image of a paper geologic map of Virginia stolen from VirginiaPlaces.org.

geologyva

I can see the entire map on my laptop screen. I can interpret and understand the information. But, it could be much, much better.

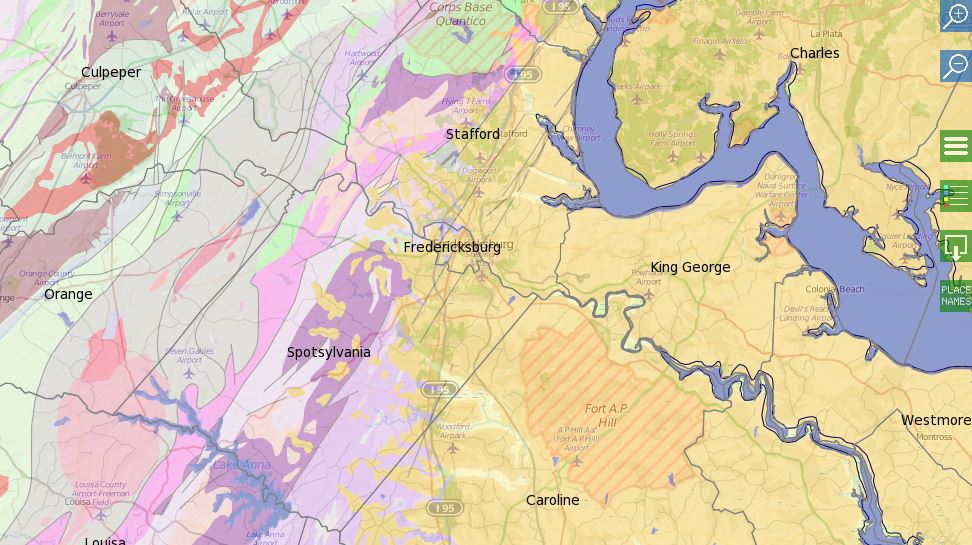

The USGS has created an interactive geological map of the U.S. With this map, it is possible to zoom in to a state or county and see the geology of an area in increasing detail. This is the Fredericksburg area. I was able to add County names and information from Google Earth, so I could determine where the rocks are located. fburggeo

This is great and very easy to use, but it only shows one type of information. What if I want to know about rocks and climate? One of the benefits of using a computer to view maps is that multiple types of information can be stored and viewed on one map.

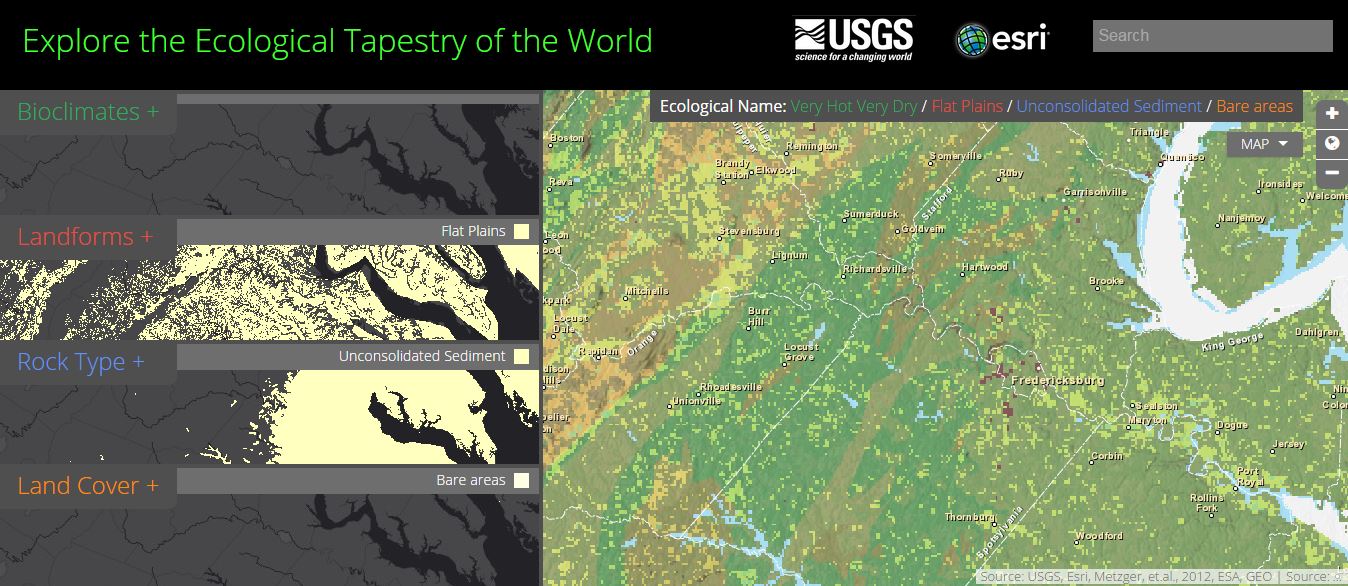

The USGS and esri worked together to create the “Ecological Tapestry of the World“. This interactive map shows rock type, but it also shows bioclimates, landforms,and land cover – all at a 250 meter resolution.

Here’s Fredericksburg.ecomap

The information is also available as a layer in ArcGIS online.

Happy National Earth Science Week!

~ slubkin ~ Leave a comment

This week is National Earth Science Week. Earth Science Week. Earth Science Week occurs during the second full week of October and is organized by the American Geosciences Institute.  Each day of the week also has a theme.

There is also an overall theme for the week. This year’s theme is “Visualizing Earth Systems“. The website is full of information and fun things to look at. There links in the left sidebar to maps, models, and remote sensing images showing climate, energy, natural hazards, minerals, water and other Earth science topics.

Enjoy these resources! And, Happy Earth Science Week.

World_geologic_provinces

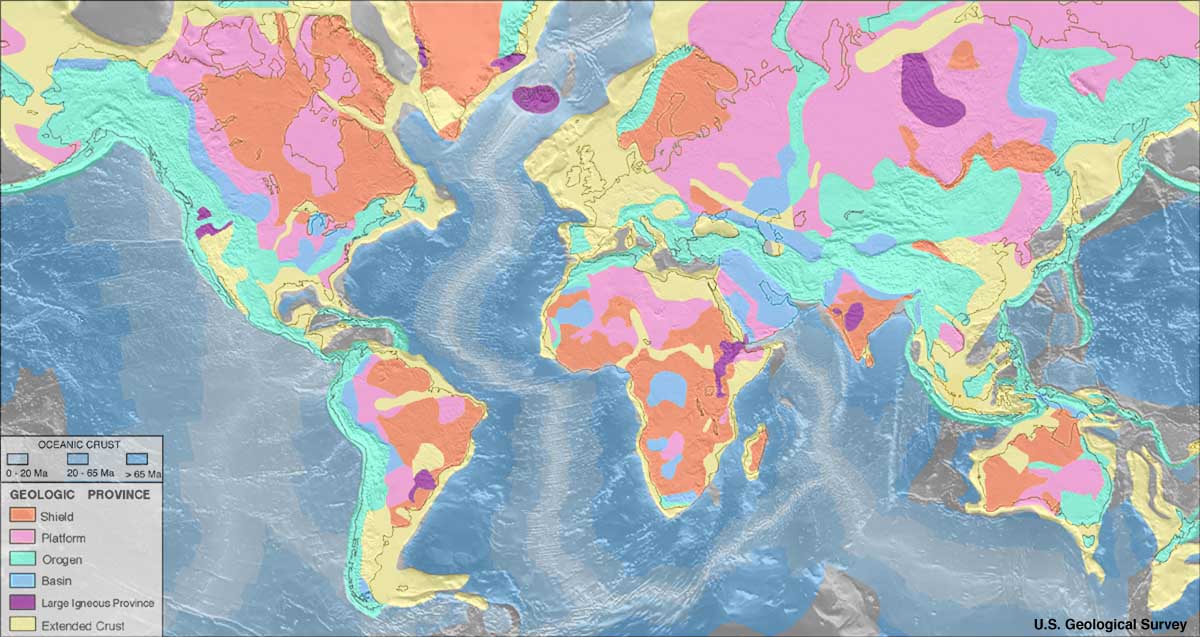

Geologic Provinces of the World https://commons.wikimedia.org/wiki/Atlas_of_the_World/Geological

On Shaky Ground 2: How Earthquakes Teach Us About Geology

~ slubkin ~ Leave a comment

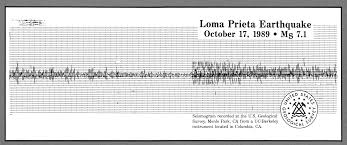

My first earthquake was the Loma Prieta earthquake on October 17, 1989. The 6.9 magnitude earthquake is also known as the World Series Quake because  millions saw the earthquake live on TV as they watched Game 3 at Candlestick Park.

The epicenter of the earthquake was located about 10 miles northeast of Santa Cruz on the Loma Prieta segment of the San Andreas fault system. I was on a commuter bus in Berkeley at the time; I didn’t feel a thing. But, many other people did.

More than 200 buildings were damaged in San Francisco’s Marina District. Forty-two people died when the upper level Cypress Street off-ramp of the Nimitz Freeway collapsed into the lower dock. Hundreds of Oakland residents were displaced when the buildings they lived in or worked in were closed because of structural damage.

Earthquakes are destructive. They cause property damage, injuries and loss of life. But, we can also learn a lot from earthquakes.

Earthquakes are caused by the interactions of tectonic plates. They generally occur at the boundaries where two or more plates meet. We can identify plate boundaries by mapping large amounts of earthquakes.

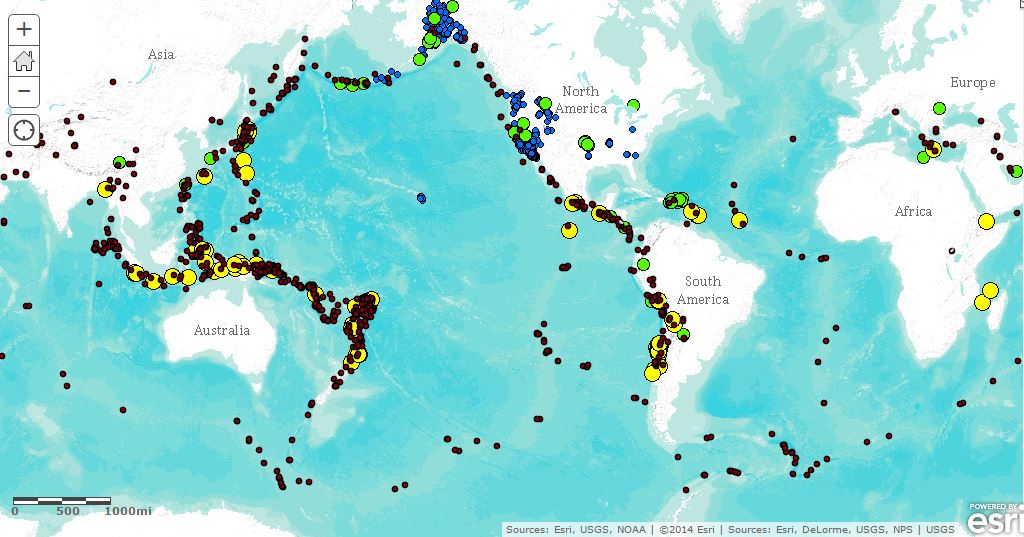

In this map, strong earthquakes from 2012-2014 are shown in red. Earthquakes from the last week are also shown.plateboundariesYou can see that most earthquakes occur in distinct bands. These bands outline the boundaries of Earth’s tectonic plates. The discovery that earthquakes occur in bands actually contributed to the idea of plate tectonics.

My students learn that there are three types of plate boundaries: divergent boundaries where plates move apart and new crust is formed; convergent boundaries where plates move together and oceanic crust is subducted or pushed down into the mantle; and, transform boundaries where plates move past each other. We can use earthquakes and volcanoes to determine the type of boundary at a map location.

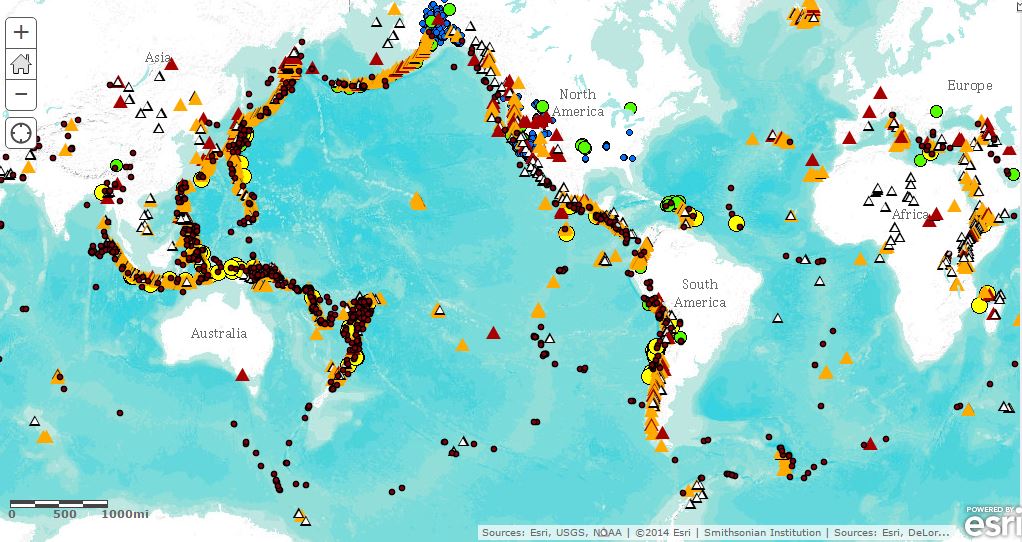

When I added the Smithsonian Institutions Holocene volcanoes layer to the map, it looks like this. volcanoesThe yellow volcanoes are volcanoes that have been active over the last 10,000 years. As you can see, most of these volcanoes occur in the same area as earthquakes. There are some exceptions.

Volcanoes that occur far from plate boundaries are “hot spot” volcanoes. These form when crust travels over a mantle plume, an area in the mantle that is extra hot. Hawaii is a chain of hot spot volcanoes.Hawaii

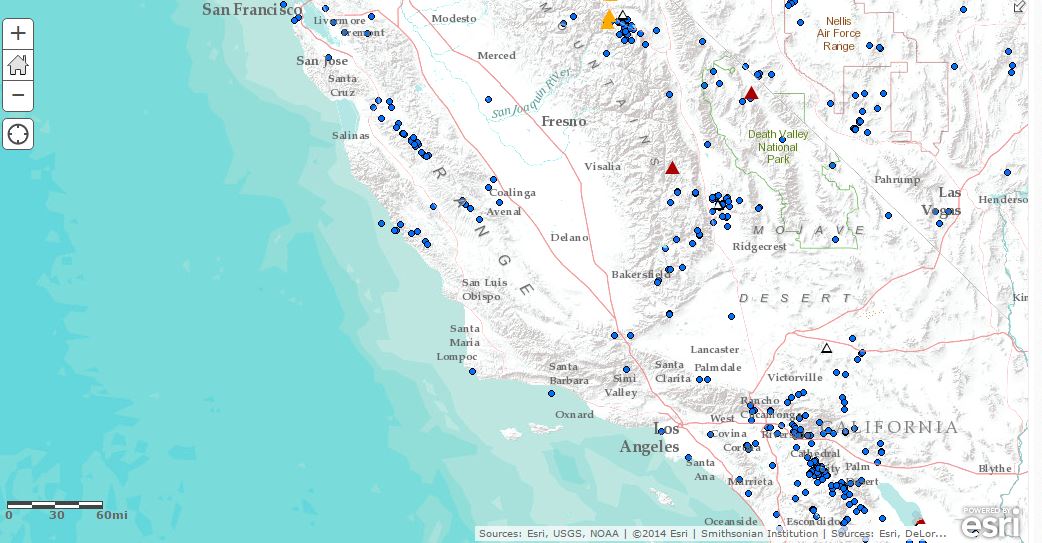

There are also places where there are earthquakes an no volcanoes. The coast of California is one of those places.

CA

In California, the San Andreas fault marks a transform boundary where the Pacific Plate is moving past the North American plate. Volcanoes only occur at divergent and convergent boundaries. The volcanoes to the east are extinct leftovers from Basin-Range rifting (divergent boundary).

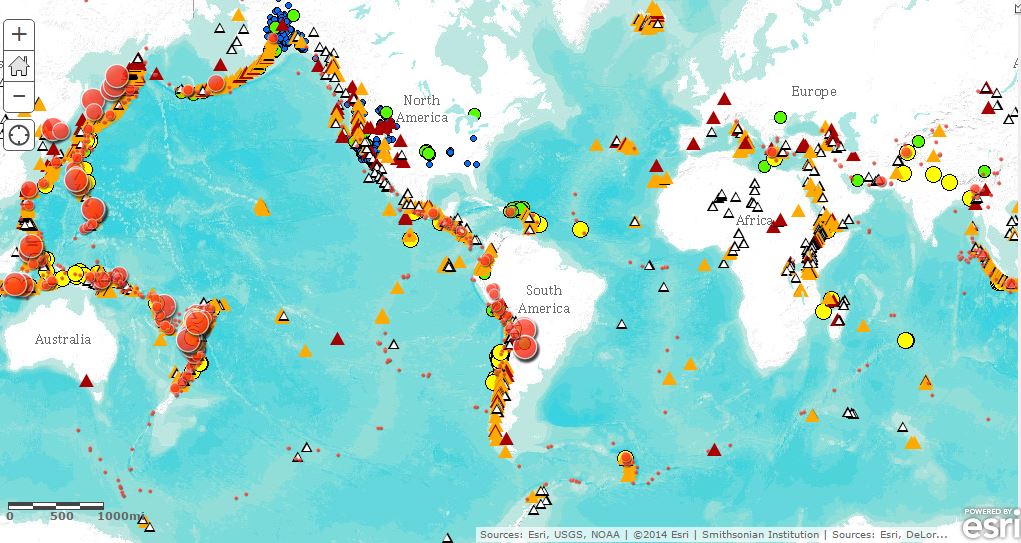

We can use earthquake depth to determine if a map boundary is convergent or divergent. In this map, depth is shown by the size of the circle. Deeper earthquakes appear larger.

deep

Shallow earthquakes (less than 75 km deep) often occur at mid-ocean ridges. These are long chains of underwater volcanoes where tectonic plates move apart and new crust is formed. Deep earthquakes occur at subduction zones where oceanic crust is being pushed under continental crust.

Oceanic-continental_convergence_Fig21oceancont

When this occurs, the subducting plate bumps and scrapes against the overriding plate. This causes deep earthquakes. When the subducting material reaches a depth of about 660 km, the rock becomes soft enough to flow and earthquakes stop.

Non-map images are from Creative Commons (Wikipedia). My map can be found here.

On Shaky Ground Part 1: Earthquakes in Virginia

~ slubkin ~ 2 Comments

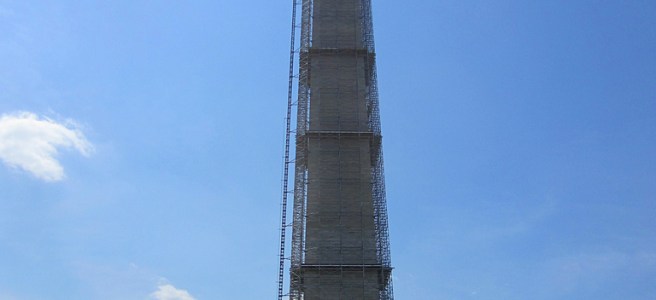

It’s been just over four years since a 5.8 magnitude earthquake in the Central Virginia Seismic Zone damaged the Washington Monument. That was a significant earthquake for our area.

Last Sunday (9/27/15) the Central Virginia Seismic Zone experienced another earthquake.  The magnitude 2.0 quake was one of hundreds of small earthquakes that have occurred in the area over the past four years. And, InsideNova feels the need to report every single one.

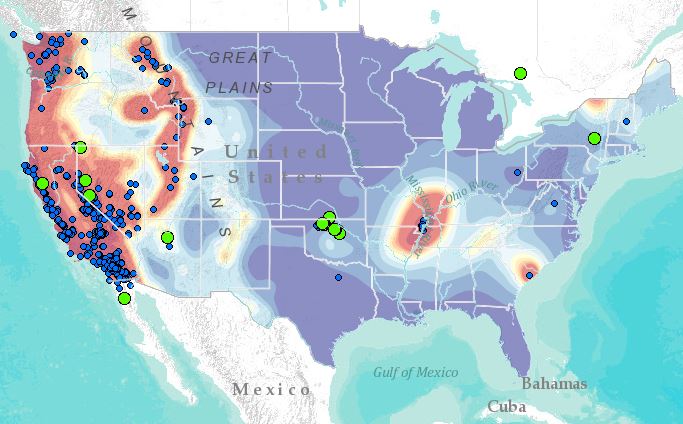

So, is Virginia really a seismically active area? I placed esri’s USA Earthquake Risk map on top of a topographic base map. The map shows potential ground shaking intensity from earthquakes, an estimate of the amount of damage an earthquake is likely to cause in an area.  I set the scale so the highest risk in shown in dark red while the lowest risk appears as dark blue. I added the past week’s worth of earthquakes (from esri Disater Response) to the map. You can see the our 2.0 quake in Central Virginia.

Seismic zones

Moost of Virginia falls in the medium blue range indicating a very low risk of damage from earthquakes. Our recent earthquake is small compared to the many of the other earthquakes that occurred in the U.S. last week.

It’s not surprising that the West Coast of the United States is covered in red and orange. The California, Oregon, and Washington coasts are active margins. This means that the edge of the continent coincides with the edges of one or more tectonic plates (in this case: North American, Juan de Fuca, Pacific). Geologic activity such as earthquakes and volcanoes generally occurs at the edges of tectonic plates.

The East Coast is a passive margin. The eastern edge of the North American tectonic plate is far out in the Atlantic ocean. So, geologic activity on the East Coast and most of the U.S. is relatively rare as indicated by the blue coloring.

Behind California is an area known as the Basin Range province. This is the remnant of an ancient rift zone. In the early Miocene (about 17 ma), the North American continent began to stretch and thin. But, before the continent could rift into two tectonic plates, seismic activity stopped. This left a network of faults which still responds to the stresses from activity on the West Coast. The New Madrid fault zone which underlies Alabama, Arkansas, Illinois, Indiana, Kansas, Kentucky, Mississippi, Missouri, Oklahoma, Tennessee and Texas is another example of an ancient rift zone.

But, not all rift zones are ancient. The red area in Northern New York and New Hampshire indicates activity from the St. Lawrence rift system, an active rift zone that runs along the St. Lawrence River. Perhaps one day, North America will split and a new Canadian plate will form.

If you are looking carefully you might notice that there are medium blue areas in the middle of continents far from any plate boundaries that have recently experienced larger earthquakes. Is that rifting? Does that mean we should worry?

No, it’s not rifting, but we may have reasons to worry. The cluster of earthquakes in Oklahoma includes several with a magnitude between 2.0 and 3.0. These small earthquakes have been linked to fracking rather than seismic activity. The 3.2 earthquake near Stamford, NY may also be caused by human activity. It is likely the result of water pressure from the Gilboa Dam.

Like Oklahoma and New York, Virginia has networks of ancient faults that can be reactivated by human activity. However, seismologists believe that most of our earthquakes are simply the result of old faults moving because of sea floor spreading in the Atlantic Ocean.

You can view my map here.

Where Will I Put the Bottled Water?

~ slubkin ~ 1 Comment

When we were in class on Wednesday night, Hurricane Joaquin seemed to be headed straight for Virginia. I’m pretty well prepared, but I donated last year’s bottled water stash in the spring. So, on Thursday morning, I stopped at Target to stock up on bottled water which is now sitting in the hallway because I don’t have space for it.

The latest forecasts show that I didn’t really need to rush and buy water; Joaquin isn’t likely to reach the East Coast. But, thoughts of hurricanes inspired a map.

hurricanes

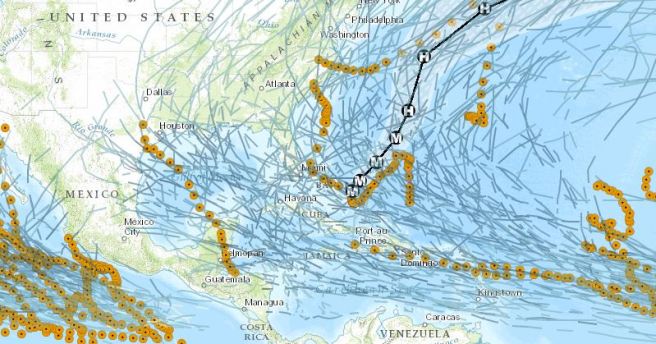

I mapped esri’s active hurricanes and recent hurricanes as well as hurricane tracks from historic hurricanes (in blue, from Maps.com) on top of a base map. Hurricane Joaquin’s path is shown in black, while the yellow dots represent the tracks of recent hurricanes. As you can see, we might be safe from Hurricane Joaquin, but (historically speaking) it’s only a matter of time until a hurricane does hit Virginia.

You can see the ArcGIS Online map here.

I think I’ll keep the water.
